Accessories

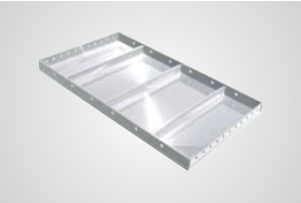

Slab Panel

Size:

600 x 1200
450 x 1200
400 x 1200
300 x 1200

The Slab panel will be used to support the concrete weight during concrete pouring and casting.

Beam Bottom Slab Panel

Size:

Dependent upon beam size

Slab Panel will be used to cover the bottom of the beam

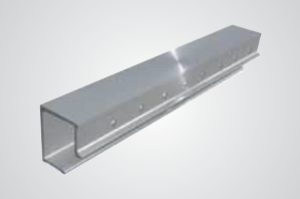

Slab Corner

Size:

150H

Connection between Wall Panel & Slab Panel

Slab Incorner

Size:

Dependent upon beam size

The Connection between Wall panel & Slab panel (inside)

Slab Outcorner

Size:

Dependent upon beam size

The Connection between Wall panel & Slab panel (outside)

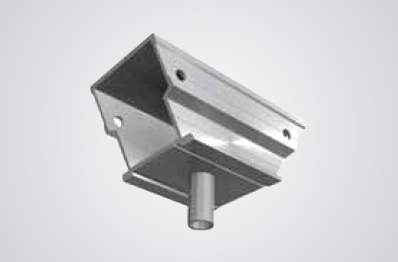

Prop Head

Size:

150 x 300

Used to join the beams together (Middle beam and/or End beam), the pipe support will be placed under the prop head

Middle Beam

Size:

150 x 900
150 x 1050

Used to join the prop heads, the middle beam supports the slab panels

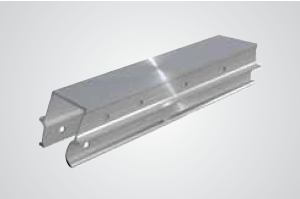

End Beam

Size:

150 x 600
150 x 900
150 x 1050

Used to join the prop head and slab corner, the end beam supports the slab panels

Joint Bar

Used to join the prop heads with the beams (Middle Beam and/or End Beam)

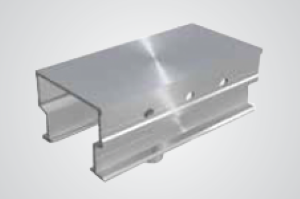

Special Prop Head

Size:

Dependent upon beam size

Used to join the beams together (Middle beam and/or End beam), this special prop head will be placed where a normal prop head cannot be installed

Corner Angle

Size:

63.5 X 63.5

Used to join panels together around the corner

Slab Box

Size:

L 8.5 x W 350 x H 330

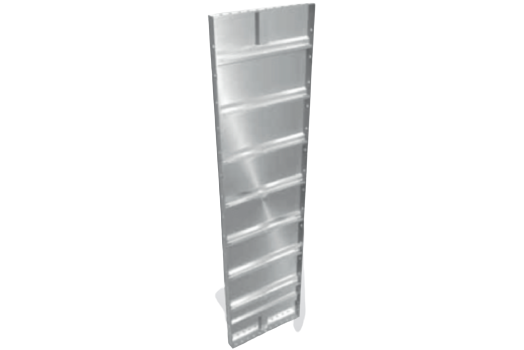

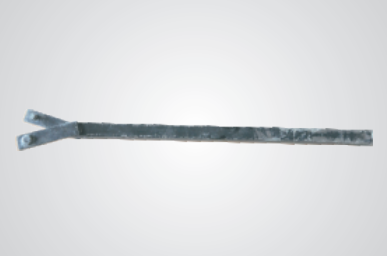

Wall Panel

Standard Panel
Width x Length (mm)

600 x 2300	600 x 2450
450 x 2300	450 x 2450
400 x 2300	400 x 2450
300 x 2300	300 x 2450

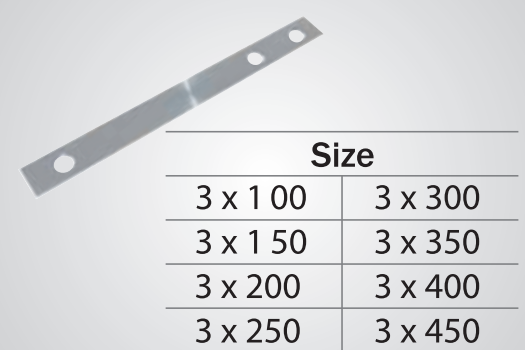

Flat Tie

The Flat tie is used to join the wall panel to the opposite side's wall panel. Depending on the wall panel's height, the number of flat tie used will vary.

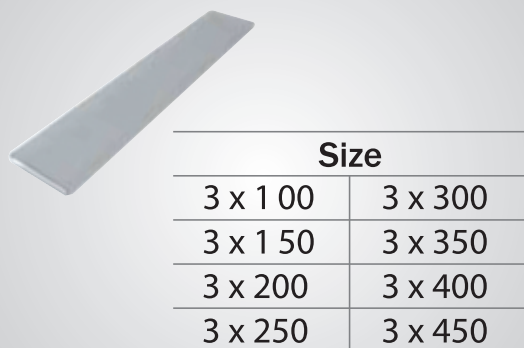

PVC Sleeve

Made of PVC material, the PVC sleeve will be installed between the Wall panel and the opposite side's wall panel. The flat tie will be inserted inside this item in order to protect the flat tie to be casted within the concrete.

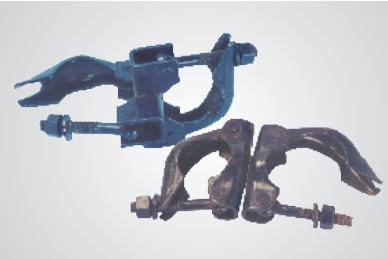

Pipe Support

The pipe support is used to support the weight of the slab during concrete pouring and casting. It will remain under the prop head until 2 levels of casting.

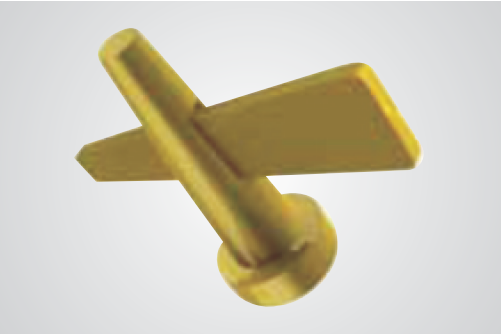

Wedge & Round Pin

The Round pin and Wedge pin will be used to join the Wall or Slab panels together.

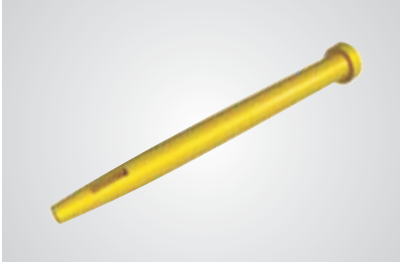

Long Pin

The Long pin and Wedge pin will be used to fix the Joint pin with the prop head and beams (Middle beam or End beam) together.

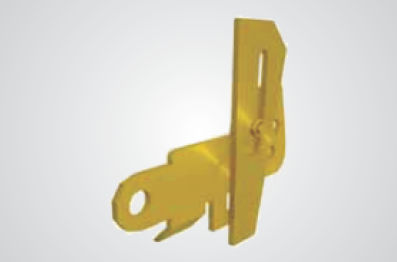

Waller-bracket & Square Pipe

The Waller bracket and square pipe are used to allow the horizontal straightness of wall panels and a flat w all sur face (especially at the bottom) after concrete casting.

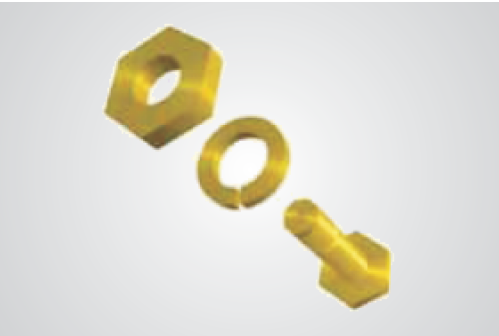

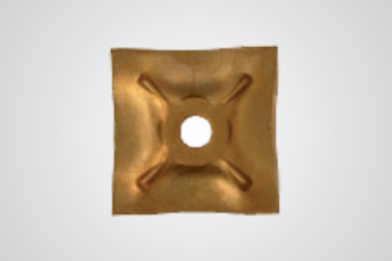

Bolt, Nut & Washer

This set of accessories will be used as an embedded anchor in order to fix panels on the concrete surface during its installation.

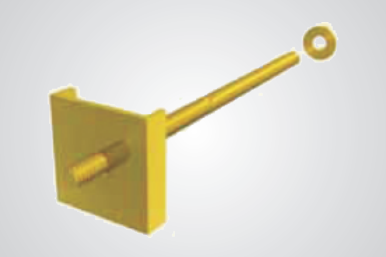

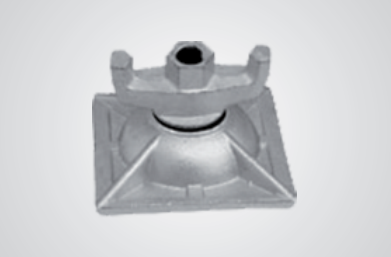

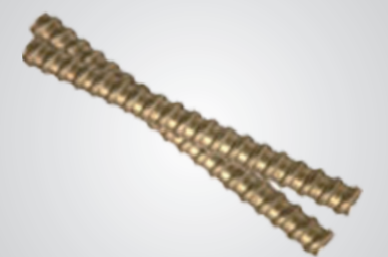

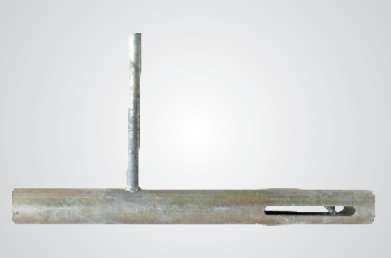

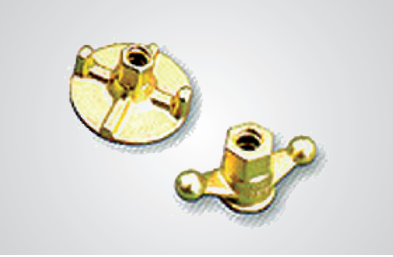

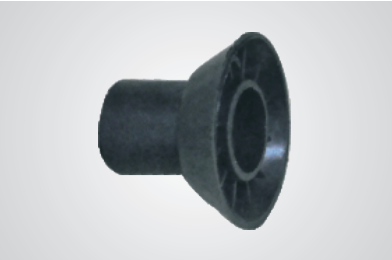

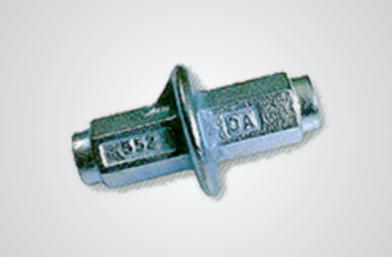

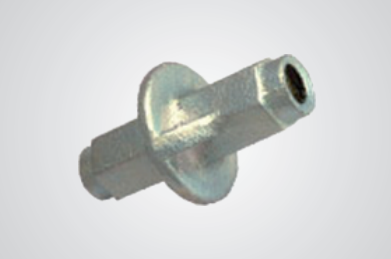

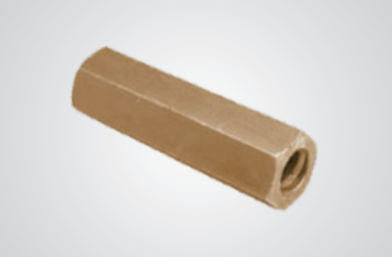

Tie Rod

This accessory will be used as an
embedded anchor in order to fix the Bracket on the concrete surface during its installation.

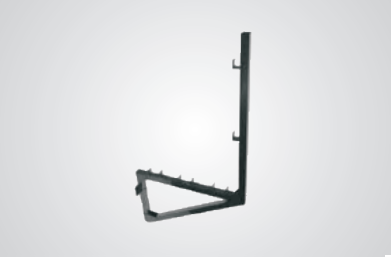

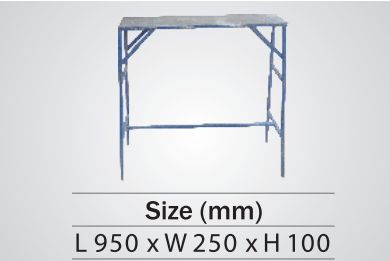

Wall Platform

As a substitute for a scaffolding system, a wall platform will be on the concrete. [Wall/Slab/Elevator] is used as a working platform for workers.

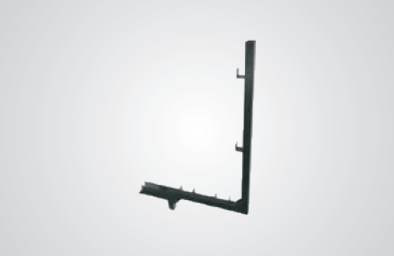

Slab Platform

As a substitute for a scaffolding system, a slab platform will be on the concrete. [Wall/Slab/Elevator] is used as a working platform for workers.

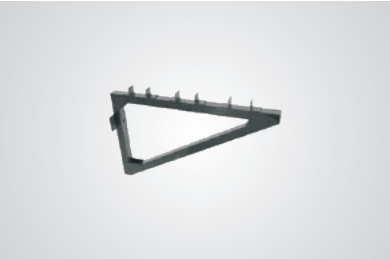

Elevator Platform

As a substitute for a scaffolding system, an elevator platform will be on the concrete. [Wall/Slab/Elevator] is used as a working platform for workers.
